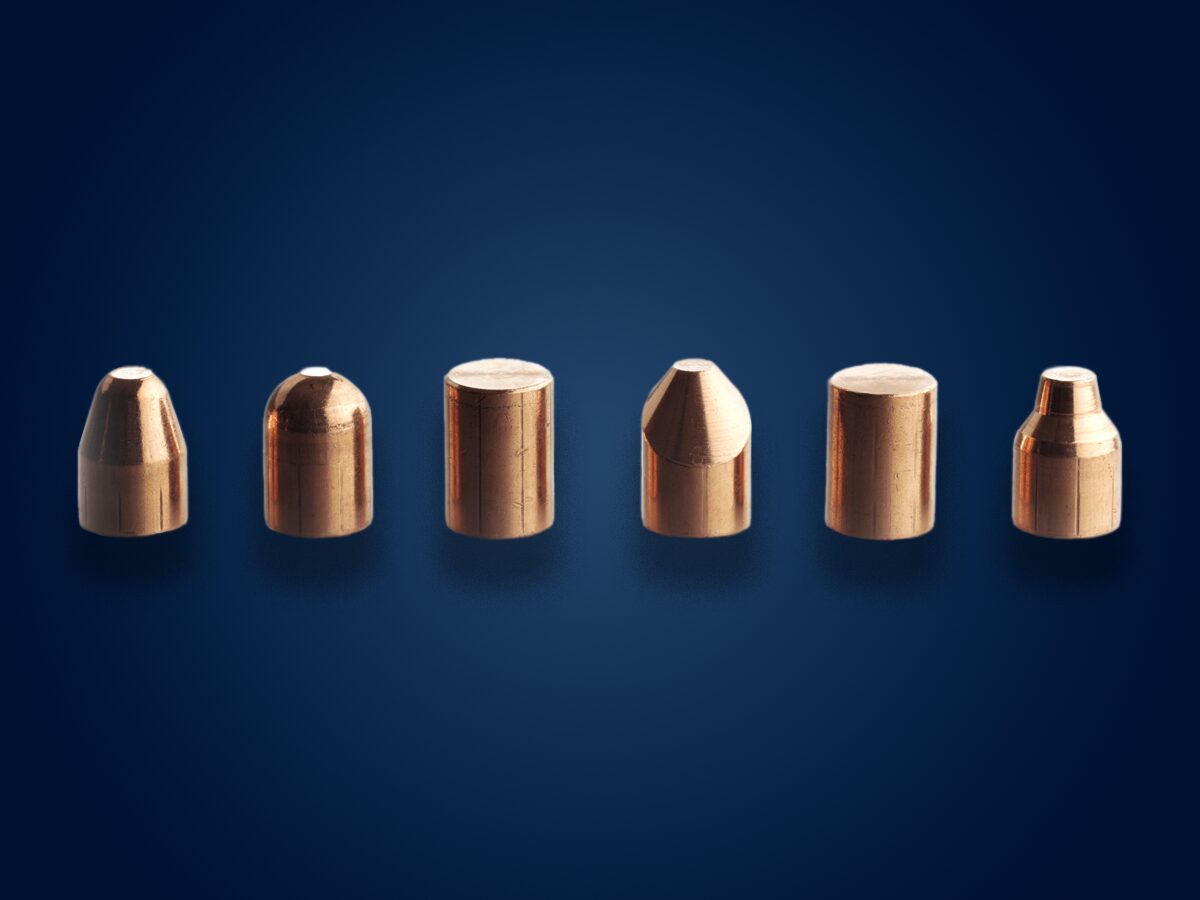

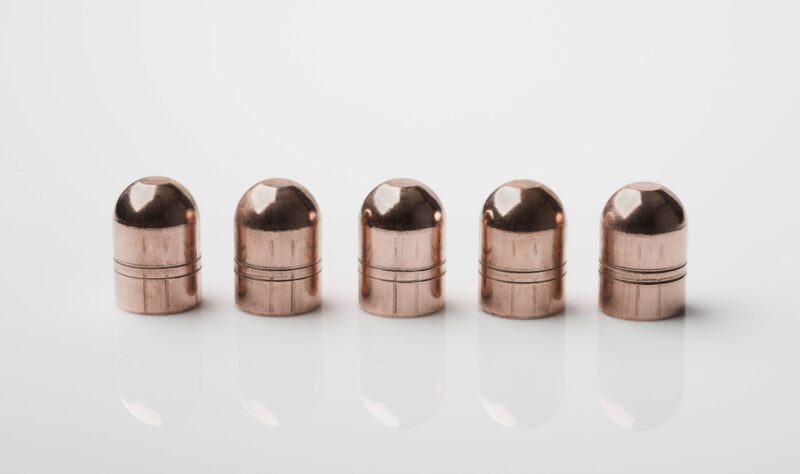

Home Products Welding Products Resistance Spot Welding Electrodes Resistance Spot Welding Electrodes Luvata revolutionizes the quality and consistency of resistance spot welding electrodes. Contact Us Contact Resistance spot welding electrodes for al resistance welding needs. With over 50 years of expertise in producing high quality welding caps, we are here to meet the diverse needs of the automotive industry. Let Luvata be your partner in achieving superior welding performance. Applications Resistance Spot Welding Resistance Spot Welding Electrodes for Automotive Manufacturers Our resistance spot welding electrodes are trusted by automotive OEM and Tier suppliers globally. In fact, our resistance welding electrodes serve anyone who produce vehicles or parts to vehicles. Our welding caps are essential in the white goods industry for any products made by resistance welding. Whether it’s for robotic or manual welding guns, our electrodes deliver unmatched performance. Customized Spot Welding Electrodes We make our resistance spot welding electrodes in all shapes and sizes to fit the customer’s exact specifications. We adhere to ISO, Asian, and RWMA standards, tailoring our products to meet the exact needs of the customer. Our resistance spot welding electrodes come in various sizes such as 13, 16 and 20, however, other size requirements are also available upon request. For alloys, we offer high quality copper alloys including: Copper Chrome Zirconium (CuCrZr) = A-Trode® Copper Zirconium (CuZr) = Z-Trode® Dispersion Strengthened Copper (DSC) = Nitrode® and Cupal® Cold-formed Resistance Spot Welding Electrodes With over 50 years of experience, Luvata has perfected the production of resistance spot welding electrodes. The alloys we use for producing resistance spot welding electrodes are extremely pure and oxygen-free. We don’t use phosphorus in our products. Our production generates very low scrap and is cost-effective – ensuring high quality and widely used products. Our cold-forming process ensures: high purity consistency strength reduced waste & increased efficiency. Cold-forming process also increases the strength of the electrode. We are very proud of the quality and consistency of our production – each resistance spot welding electrode in a production lot is exactly the same! H-Trode® – Exceptional Solution for Resistance Welding of Aluminum Luvata has developed a very high purity copper alloy, H-Trode®, that is ideal for welding aluminum. It is a high conductivity copper electrode and the most cost-effective electrode for welding aluminum. H-Trode® electrodes enable stable spot welding of aluminum alloys using conventional resistance spot welding equipment. Contact us to learn more. Discover Our Solutions A-Trode® A-Trode® is the universal cap electrode for resistance welding of light-to-medium gauge coated and uncoated steels. A-Trode’s freedom from oxygen allows us to alloy the copper with the optimum levels of chrome and zirconium. Alloy: Copper Chrome Zirconium (CuCrZr) Quality Specifications AlloyC18150 CuCrZr, EN ISO 5182 A2/2, DIN 17666 Wn 2.1293, RWMA Class IIChemical compositionCr 0.7% to 1.2%, Zr 0.06% to 0.15%. Others max. 0.2%, Cu balancePhysical material properties at 200CMass: 8.9g/cm3Specific heat: 376 J/kg.KThermal conductivity: 320 W/m.KExpansion coefficient (20-300oC): 17.0 x 10-6 m/mKElectric conductivity: min. 43 S/m(solution annealed and hardened) min 74% IACSSoftening temperature: min. 500°CDimensions and tolerancesTo ISO 5821 or other standards as required.Special electrodes to customer drawingPackagingMost items in cartons of 500 piecesDocumentationAcceptance test certificate EN 10204 3.1 B possible if desired against a chargeArea of applicationMale and female resistance welding electrodes. Backing dies – series and indirectSeam welding wheelsProjection welding electrodes Mechanical Specifications – Quality Form of supplyTensile strength [N/mm2] 0.2% Offset yield strength [N/mm2] Elongation AS [%] Hardness Electrodes≥ 490≥ 430≥ 15≥ 172 Physical Properties Hardness at ambient temperatureMinimum 80 HRBConductivityMinimum 80% IACS Errors and omissions excepted. Values given are industry standards. Actual properties will vary dependent upon amount of cold work. Cupal® The Cupal® cap is a cold-formed alloy of dispersion strengthened copper (DSC) with aluminum oxide. It consistently outperforms copper chrome and copper chrome zirconium electrodes in resistance to annealing, consistent electrical conductivity, electrode life and lower maintenance costs. Advantages of Cupal® welding electrodes longer weld life anti-stick characteristics reduces energy requirements works on all steels resists mushrooming for improved up-time Traceability All materials are fully traceable. A Cupal® electrode can be recognized by its four (4) pair of knurls evenly spaced around the periphery of the electrode. AlloyC15725 CuAl2O3, EN ISO 5182 C20/1, RWMA Class 20Chemical compositionAluminum 0.25% by weight as Al2O3 Cu balancePhysical material properties at 20oCDensity: 8.86g/cm3Thermal conductivity: 344 W/m.KExpansion coefficient (20-150°C): 16.6 x 10-6 m/mKElectric conductivity: 87% IACSSoftening temperature: 1083°CDimensions and tolerancesTo ISO 5821 or other standards as required. Special electrodes to customer drawing.Packaging Most items in cartons of 500 piecesDocumentationAcceptance test certificate EN 10204 3.1 B possible if desired against a charge.Area of applicationMale and female resistance welding electrodeBacking dies – series and indirectProjection welding electrodes Mechanical Properties Form of supplyTensile strength MPa Yield strength MPa Elongation [%] Hardness HVElectrodes393 – 441310 – 35816 – 21%130 Physical Properties Hardness at ambient temperature72 HRBConductivity87% IACS Errors and omissions excepted. Values given are industry standards. Actual properties will vary dependent upon amount of cold work. H-Trode® H-Trode® is the ideal cap electrode for resistance welding of 5000, 6000 and 7000 grade aluminum components. The combination of advanced copper metallurgy and our cold-forming technology gives you an electrode that outperforms conventional electrodes when welding aluminum. The superior conductivity of H-Trode® means that the maximum electrical resistance in an assembly is clearly between the aluminum sheets. This reduces the heat generated between the sheets and electrode, which in turn reduces sticking. Benefits Compatible with conventional spot welding equipment Increased productivity Cost-effective electrode for aluminium welding High conductivity Non-stick properties Compatible with conventional spot welding equipment Alternative welding solutions have been developed for aluminum, but equipment is expensive, large and more difficult to implement than conventional spot welding. H-Trode® electrodes enable stable spot welding of aluminum alloys using conventional spot welding equipment. Increased productivity Compared with alternative joining methods, spot welding using H-Trode® electrodes and standard dressing equipment significantly increases productivity. Most cost-effective electrode for aluminum welding H-Trode®’s increased life expectancy, maintenance savgins and consistent quality welds assure you the highest return on your investment for welding aluminum. Physical properties All H-Trode® electrodes are cold worked and most items are fully cold formed to ensure the maximum hardness. H-Trode® has a high-conductivity of minimum 92% IACS. Nitrode® The Nitrode® cap is a cold-formed alloy of dispersion strengthened copper with aluminum oxide. Nitrode® demonstrates superior weld performance on a variety of steels. It resists mushrooming on the contact surface, allowing more welds before tip dressing, heat stepping or tip change. No other cap electrode can match Nitrode® for its cost-effective, high quality performance in resistance-welding applications. Nitrode®consistently outperforms copper chrome and copper chrome zirconium electrodes by resisting annealing. All Nitrode® materials are fully traceable. Nitrode® electrodes can be recognized by their single knurls markings. Advantages Longer weld life Non-stick Reduces energy requirements Works on all steels Lowers manufacturing costs Quality Properties AlloyC15760 CuAl2O3, EN ISO 5182 C20/1, RWMA Class 20Chemical compositionAluminum 0.60% by weight as Al2O3 Cu balancePhysical material properties at 20oCDensity: 8.81g/cm3Thermal conductivity: 322 W/m.KExpansion coefficient (20-150°C): 16.6 x 10-6 m/mKElectric conductivity: 78% IACSSoftening temperature: 1083°CDimensions and tolerancesTo ISO 5821 or other standards as required. Special electrodes to customer drawing.PackagingMost items in cartons of 500 piecesDocumentationAcceptance test certificate EN 10204 3.1 B possible if desired against a charge.Area of applicationMale and female resistance welding electrodeBacking dies – series and indirectProjection welding electrodes Mechanical Properties Form of supplyTensile strengthMPaYield strengthMPa Elongation[%] HardnessHVElectrodes489 – 537393 – 44118 – 23%160 Physical Properties Hardness at ambient temperature83 HRBConductivity78% IACS Errors and omissions excepted. Values given are industry standards. Actual properties will vary dependent upon amount of cold work. Z-Trode® Z-Trode® is the ideal cap electrode for resistance welding of light-to-medium gauge coated and uncoated steels and aluminum alloys. It is the electrode of choice for customers looking to reduce spatter in welding. Made from zirconium copper, the welding electrode cap outperforms conventional electrodes. Advantages Prevents sticking Resists mushrooming Requires less energy Reduces downtime Traceability All materials are fully traceable. Z-Trode electrodes can be recognized by their flats around the periphery of the electrode cap. AlloyC15000 CuZr, EN ISO 5182 A2/4, DIN 17666 Wn 2.1580, RWMA Class IChemical compositionZirconium 0.15% Cu balancePhysical material properties at 20oCMass: 8.89g/cm3Specific heat: 385 J/kg.KThermal conductivity: 367 W/m.KExpansion coefficient (20-300°C): 16.9 x 10-6 m/mKElectric conductivity: min. 53 S/mSolution-annealed and hardened: min. 92% IACSSoftening temperature: 1083°CDimensions and tolerancesTo ISO 5821 or other standards as required. Special electrodes to customer drawing.PackagingMost items in cartons of 500 piecesDocumentationAcceptance test certificate EN 10204 3.1 B possible if desired against a charge.Area of applicationMale and female resistance welding electrodeBacking dies – series and indirectProjection welding electrodes Mechanical Properties Form of supplyTensile strength [N/mm2] 0.2% Offset yield strength [N/mm2]Elongation AS [%] HardnessElectrodes≥ 420≥ 379≥ 12 ≥ 132 Physical Properties Hardness at ambient temperatureMinimum 65 HRBConductivityMinimum 85% IACS Errors and omissions excepted. Values given are industry standards. Actual properties will vary dependent upon amount of cold work. Manufacturing Locations Asia Suzhou, China Europe Pori, Finland Welwyn Garden City, UK North America Delaware, US South America São Paulo, Brazil Document Library Related Industries Automotive Welding read more Our specialists are just an email away! NameThis field is for validation purposes and should be left unchanged.First name(Required)Last name(Required)Email(Required) Phone numberCompany or organization(Required)IndustryContinent(Required)Select your continentAfricaAsiaAntarcticaAustraliaEuropeNorth AmericaSouth AmericaCountrySelect your countryAfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBonaire, Sint Eustatius and SabaBosnia and HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBrunei DarussalamBulgariaBurkina FasoBurundiCabo VerdeCambodiaCameroonCanadaCayman IslandsCentral African RepublicChadChileChinaChristmas IslandCocos IslandsColombiaComorosCongoCongo, Democratic Republic of theCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d'IvoireDenmarkDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard Island and McDonald IslandsHoly SeeHondurasHong KongHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKorea, Democratic People's Republic ofKorea, Republic ofKuwaitKyrgyzstanLao People's Democratic RepublicLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacaoMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmarNamibiaNauruNepalNetherlandsNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorth MacedoniaNorthern Mariana IslandsNorwayOmanPakistanPalauPalestine, State ofPanamaPapua New GuineaParaguayPeruPhilippinesPitcairnPolandPortugalPuerto RicoQatarRomaniaRussian FederationRwandaRéunionSaint BarthélemySaint Helena, Ascension and Tristan da CunhaSaint Kitts and NevisSaint LuciaSaint MartinSaint Pierre and MiquelonSaint Vincent and the GrenadinesSamoaSan MarinoSao Tome and PrincipeSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia and the South Sandwich IslandsSouth SudanSpainSri LankaSudanSurinameSvalbard and Jan MayenSwedenSwitzerlandSyria Arab RepublicTaiwanTajikistanTanzania, the United Republic ofThailandTimor-LesteTogoTokelauTongaTrinidad and TobagoTunisiaTurkmenistanTurks and Caicos IslandsTuvaluTürkiyeUS Minor Outlying IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVenezuelaViet NamVirgin Islands, BritishVirgin Islands, U.S.Wallis and FutunaWestern SaharaYemenZambiaZimbabweÅland IslandsYour message concerns(Required)Select a product or other fieldBall-Lock SystemsCopper AnodesCopper ConnectorsCopper Components for Vacuum InterruptersCopper Profiles & SpecialitiesCopper TubesCopper WiresDiesel & Hydrogen Injector SleevesHollow ConductorsLuvata Group InquiriesMediaMetallurgical Copper ComponentsOxygen-Free Copper ProductsPlasma ShieldsRods, Bars, Strip & TapeSuperconducting Wire and CableUltra Pure Copper ProductsWelding ProductsOther ProductsPlease select a product or other subject your message concerns.Do you want to specify which copper connector product your message concerns?Select a more specific product if neededEV, PHEV & Industrial ConnectorsEV Electrical & Connection ComponentsHigh Voltage Charging PinsHigh Voltage ComponentsDo you want to specify which metallurgical copper components your message concerns?Select a more specific product if neededAnode Casting MoldsBus Bar SystemsCopper StavesCopper Cooling ElementsMachined Copper ProductsDo you want to specify which copper profile product your message concerns?Select a more specific product if neededCoated Copper BusbarsCommutator CopperCustomized Copper ProfilesCopper Cooling ElementsCuZr, CuCr1Zr and CuNiSi ProductsRotor Coil CopperPA12 Insulated Copper BusbarsDo you want to specify which welding product your message concerns?Select a more specific product if neededAdapters & ShanksWelding Contact TipsProjection Welding ElectrodesResistance Spot Welding ElectrodesMIG & Laser Brazing Wire: Luvaweld®Seam Weld WheelsDo you want to specify which copper wire product your message concerns?Select a more specific product if neededCopper Aquaculture WireBattery Nail WireCut-to-Length Copper WireGarment Fastener WireCopper Infiltrant WireYour message(Required)Possible attachmentsMax. file size: 5 MB. Consent(Required) I agree to Luvata's privacy policy.
